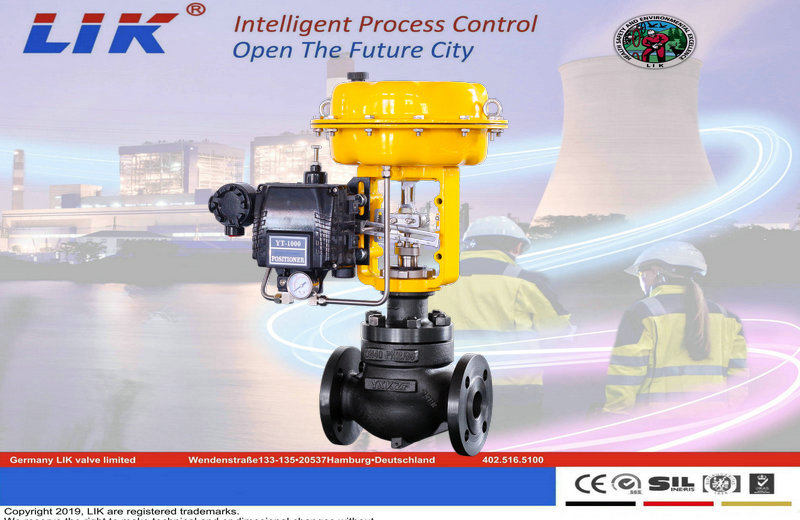

進口氣動多孔式套筒調節閥，采用流體壓力平衡型閥芯結構，與10T系列套筒調節閥相比，按不同調節特性設計的多孔式套筒，起到了降噪、抗沖刷、防空化的作用；其整體式的套筒與平衡密封環組成的雙導向閥內件結構，動態穩定性得到提高，使閥內件承受的工作壓差亦得以顯著的改善；模塊化的閥內件組合，十分便利于閥內件的更新，是一種簡易型降壓降噪套筒調節閥。如該系列不能滿足流體條件，可選用10S系列多級降壓型套筒調節閥。
規格參數
驅動類型：氣動，電動
公稱通徑：NPS 1 1/2”~24”(DN40~DN600)
公稱壓力：Class150~Class600(PN16~PN100)
溫度范圍：-196℃~540℃
材料范圍：碳鋼,不銹鋼,雙相不銹鋼,Inconel,Monel,Hastelloy,Ti等
泄漏等級：ANSI IV級、Ⅴ級
閥蓋類型：標準型 ，伸長型，低溫型，波紋管型
主要應用：氣體或液體介質，無固體顆粒的較高壓差工況場合。
產品特點：能承受較高工作壓差，優良的動態穩定性，多孔式套筒結構具備一定的降噪音、抗沖刷、抗氣蝕功能。
The imported pneumatic multi-hole sleeve control valve adopts a fluid pressure balanced spool structure. Compared with the 10T series sleeve control valve, the multi-hole sleeve designed according to different adjustment characteristics plays the role of noise reduction, erosion resistance, and cavitation prevention; its integral sleeve and the double-guided valve internal component structure composed of the balance sealing ring improve the dynamic stability, and the working pressure difference that the valve internal component withstands is also significantly improved; the modular combination of valve internal components is very convenient for the update of valve internal components. It is a simple type of pressure-reducing and noise-reducing sleeve control valve. If this series cannot meet the fluid conditions, the 10S series multi-stage pressure-reducing sleeve control valve can be selected.
Specification parameters
Drive type: Pneumatic, Electric
Nominal diameter: NPS 1 1/2" - 24" (DN40 - DN600)
Nominal pressure: Class150 - Class600 (PN16 - PN100)
Temperature range: -196°C - 540°C
Material range: Carbon steel, Stainless steel, Duplex stainless steel, Inconel, Monel, Hastelloy, Ti, etc.
Leakage level: ANSI Class IV, V
Bonnet type: Standard type, Extended type, Low temperature type, Bellows type
Main application: Gas or liquid medium, high pressure difference working conditions without solid particles.
Product features: Can withstand higher working pressure difference, excellent dynamic stability, and the multi-hole sleeve structure has certain functions of noise reduction, erosion resistance, and cavitation resistance.
